Deep Groove Ball Bearing

Deep Groove Ball Bearing

The most widely used bearing type globally. Handles both radial and axial loads in both directions with minimal friction.

Technical Overview

Deep Groove Ball Bearings are the most common and versatile rolling element bearings in industrial use. Their deep raceway grooves allow them to carry significant radial loads while simultaneously handling moderate axial loads in both directions — without any modification to the mounting arrangement.

Available in open, shielded (ZZ), and sealed (2RS) variants, these bearings suit a vast range of operating conditions — from clean rooms to dusty industrial environments. The sealed variants (rubber contact seals) are pre-lubricated with grease and maintenance-free under normal conditions.

AMFO Traders stocks the full range of SKF, FAG, NTN and AMFO Bearing deep groove ball bearings — from miniature to large bore sizes — for immediate supply from Lahore.

Product Images

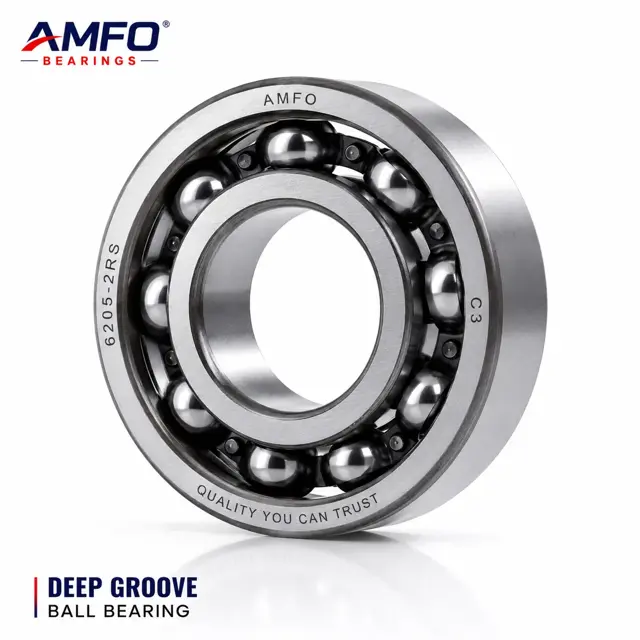

Deep Groove Ball Bearing — image 1
01
02

Key Features

Handles combined radial and axial loads
Very low friction — suitable for high-speed operation
Available open, shielded (ZZ) or sealed (2RS/RS)
Maintenance-free sealed variants pre-packed with grease
Bore range: 3 mm – 320 mm
Single and double row variants available
High precision grades (P6, P5, P4) available
Wide temperature range: -30°C to +150°C (sealed)

Typical Applications

Electric motors & generatorsGearboxes & transmissionsPumps & compressorsFans & blowersAutomotive alternators & wheel hubsAgricultural machineryTextile machineryHousehold appliances
Request Bulk QuotationFill Quotation FormDownload Deep Groove Ball Bearing Catalogue

Technical Specifications

Bore diameter range3 mm – 320 mm
Speed ratingUp to 40,000 rpm (small sizes)
Dynamic load rating0.34 kN – 200 kN
Contact angle0° (radial)
Row configurationSingle row / Double row
Standard designationISO 15 (6000 series)
Operating temperature-30°C to +150°C
LubricationGrease or oil

Brands We Stock

AMFO BearingSKFFAGNTNINAIKOSTIEBERTIMKEN

Need a different size?

We can source non-standard sizes and uncommon series. Contact our team.
