Needle Roller Bearing

Needle Roller Bearing

Long thin rollers deliver very high load capacity in an extremely compact radial envelope where space is at a premium.

Technical Overview

Needle Roller Bearings use elongated cylindrical rollers with a very high length-to-diameter ratio. This unique geometry delivers surprisingly high radial load capacity for their bore diameter — making them the preferred choice wherever radial space is limited but load is significant.

They are available in a wide range of configurations: drawn cup (HK/BK) with or without inner ring, machined ring types (NA/RNA) with or without inner ring, and track rollers/cam followers. The IKO and INA brands specialise heavily in needle roller bearings and AMFO Traders stocks both.

These bearings are used extensively in automotive transmissions, printing machinery, textile frames, and two-stroke engines — wherever you need to pack a large bearing into a small space.

Product Images

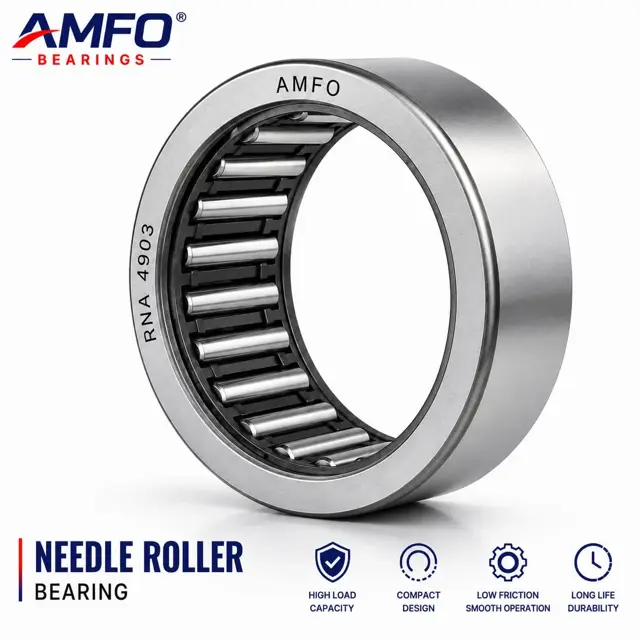

Needle Roller Bearing — image 1

Key Features

Very high radial load capacity in compact radial space
Roller L/D ratio ≥ 3:1
Drawn cup (HK/BK) or machined ring (NA/RNA) types
With or without inner ring
Cage or full-complement designs
Bore range: 3 mm – 200 mm
Suitable for oscillating and rotating motion

Typical Applications

Automotive gearboxes & transmissionsTwo-stroke engine connecting rodsPumps & hydraulic motorsPrinting & packaging machineryTextile machineryAerospace actuatorsPlanetary gearboxes
Request Bulk QuotationFill Quotation FormDownload Needle Roller Bearing Catalogue

Technical Specifications

Bore diameter range3 mm – 200 mm
Roller L/D ratio≥ 3 : 1
ConfigurationDrawn cup / Machined ring
Inner ringWith or without
Standard designationISO 3030 (NA/HK series)
Operating temperature-30°C to +120°C
LubricationGrease or oil (through hole)

Brands We Stock

AMFO BearingSKFFAGNTNINAIKOSTIEBERTIMKEN

Need a different size?

We can source non-standard sizes and uncommon series. Contact our team.
