Linear Bearing

Linear Bearing

Recirculating ball linear bearings enable smooth, precise, low-friction motion along hardened ground shafts.

Technical Overview

Linear Bearings (linear ball bushings) provide smooth, low-friction motion along a hardened and ground cylindrical shaft. Rows of recirculating balls in a polymer cage provide point contact with the shaft, resulting in extremely low friction regardless of travel speed — unlike plain bushings which require adequate lubrication velocity.

They are available in closed (LM/LME) and open (LMO/LUU) configurations. The open type allows the bearing to be used on shafts mounted to surfaces. Standard series (LM) and long series (LME/LUU) are available for applications requiring greater load distribution over shaft length.

AMFO Traders stocks SKF and IKO linear bearings in the most common shaft diameter range for immediate supply.

Product Images

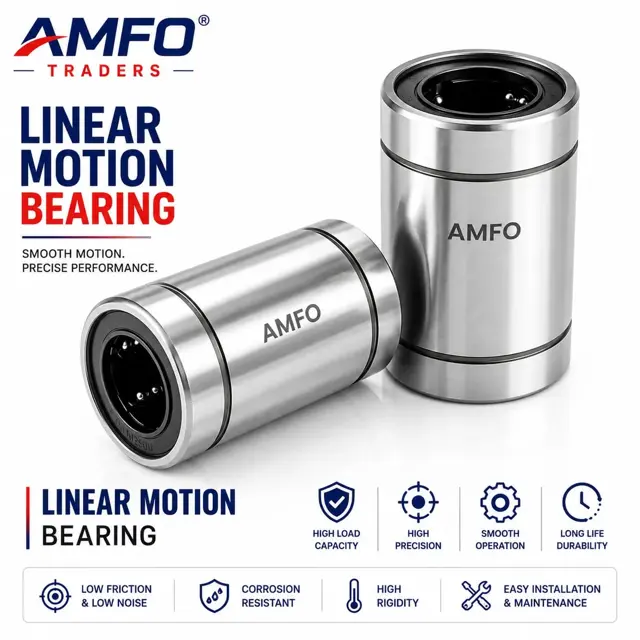

Linear Bearing — image 1

Key Features

Very low friction — independent of travel speed
Suitable for high-precision linear positioning
Closed (LM) and open (LMO) configurations
Standard (LM) and long (LUU) variants
Shaft diameter range: 6 mm – 60 mm
Matched with hardened & ground shafts
Low noise, maintenance-free (sealed with grease)

Typical Applications

CNC machine tool axes3D printers & laser cuttersIndustrial automation & pick-and-placeMedical & laboratory equipmentSemiconductor manufacturingPrecision measuring machinesCamera & broadcast equipment slides
Request Bulk QuotationFill Quotation FormDownload Linear Bearing Catalogue

Technical Specifications

Shaft diameter range6 mm – 60 mm
Motion typeLinear (translation only)
ConfigurationClosed (LM) / Open (LMO)
Length variantsStandard / Long (LUU)
Standard designationISO 10285 (LM series)
Operating temperature-10°C to +80°C
LubricationFactory-greased, maintenance-free

Brands We Stock

AMFO BearingSKFFAGNTNINAIKOSTIEBERTIMKEN

Need a different size?

We can source non-standard sizes and uncommon series. Contact our team.
